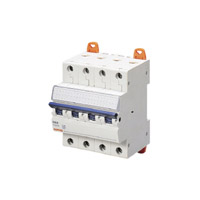

CIRCUIT BREAKER 63A View larger

CIRCUIT BREAKER 63A

GEW.92693

New product

Circuit breaker C - MT 100 - 4 pôles - 63 A

More details

More info

TECHNICAL DATA

Description
MINIATURE CIRCUIT BREAKER
Code
MT 100
No. of poles
4P
No. modules
4
Rated current
63 A
Curve
C
Rated voltage
230 - 400 V
Standard
EN 60898, EN 60947-2
Rated frequency (Hz)
50/60 Hz
Breaking capacity EN 60898 230V (Icn)
10000 A
Breaking capacity EN 60898 400V (Icn)
10000 A
Breaking capacity EN 60898 (Ics)
0.75 x Icn
Breaking capacity EN 60947-2 230V (Icu)
20 kA
Breaking capacity EN 60947-2 400V (Icu)
12.5 kA
Breaking capacity EN 60947-2 (Ics)
50% Icu
Insulation voltage
500 V
Rated impulse withstand voltage
4 kV
Minimum operating voltage
12V ac/dc
Maximum operating voltage
440V AC / 220V DC
Electrical endurance
10000
Mechanical endurance
20.000
Section rigid cable
<=1x35 - <=2x16 - <=1x16+2x10 mm²
Section flexible cable
<=1x35 - <=2x16 - <=1x16+2x10 mm²
Rated tightening torque
2 Nm
Operating temperature
-25 +60 °C
Stocking temperature
-40 +70 °C
Electrocod
1411
Ware number
85362010
