SYSTEM CONTROLLER

LC3.SCUDCS

New product

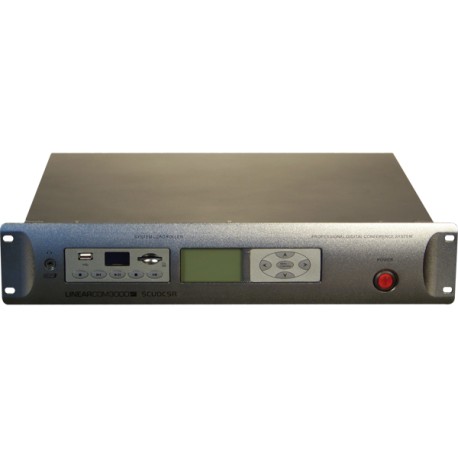

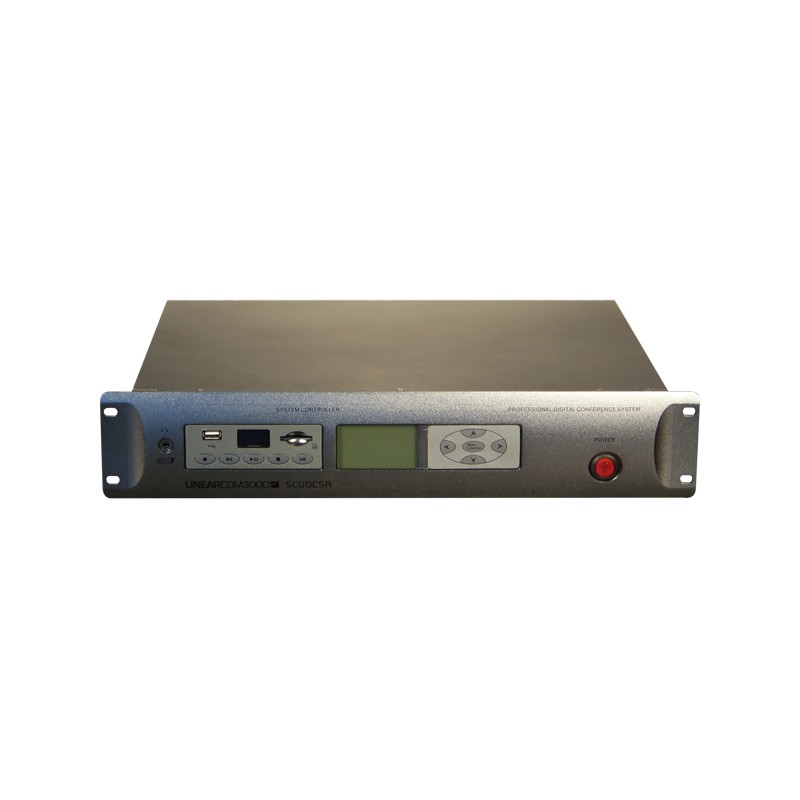

The system controller SCUDCS is the main component of the Digital Conference System. It can control all the conference functions with the navigation keyboard of the front panel and the LCD display

More details

2 250,00 € tax excl.

Add to wishlist

More info

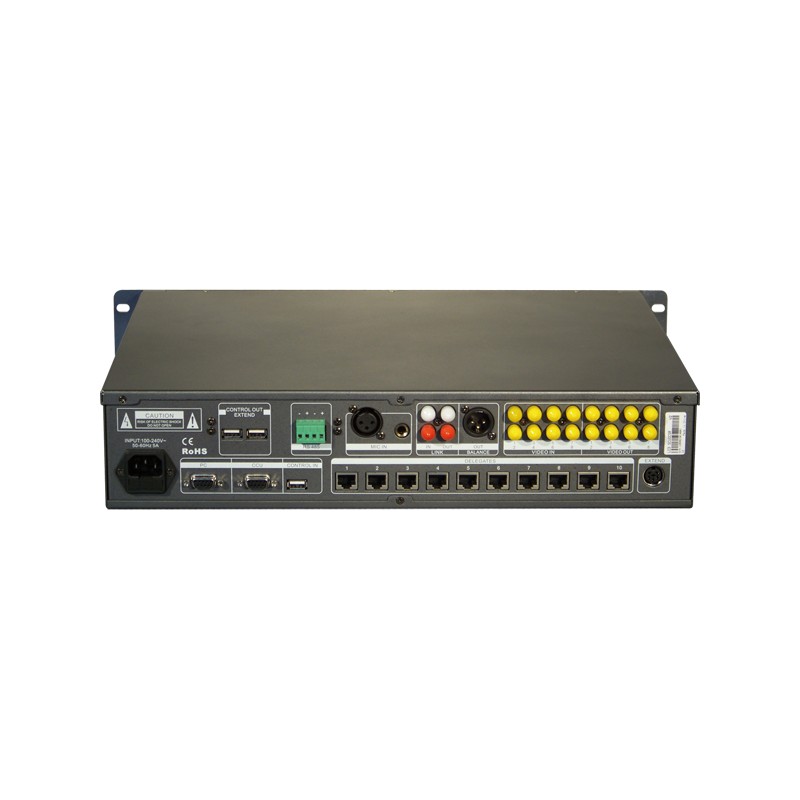

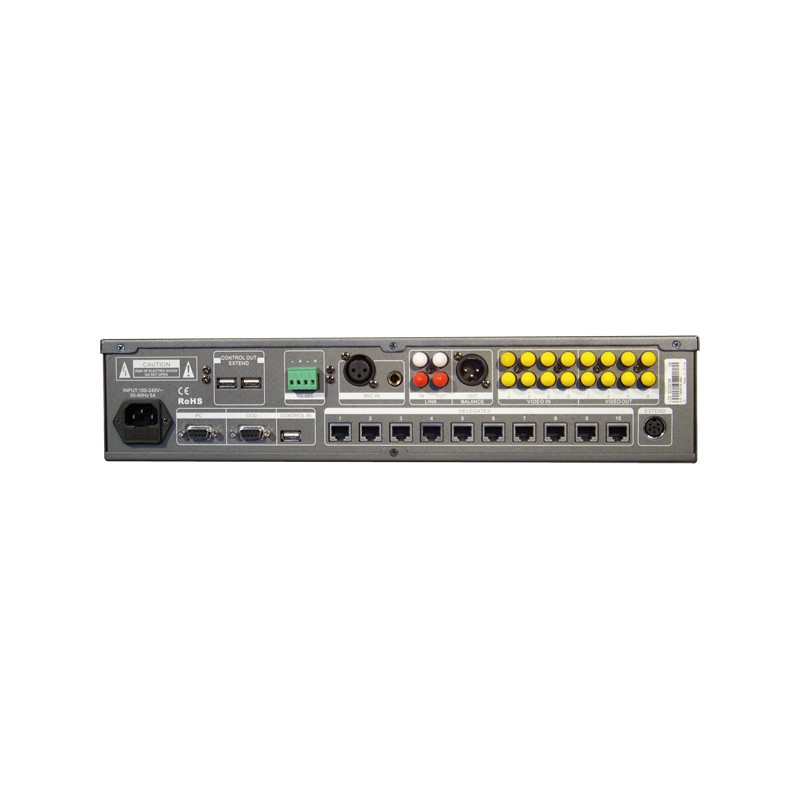

Power supply : AC 100 ~ 240V / 50-60Hz
Unit capacity : 100 maximum (can be more. Depends on the extension controller)
Audio inputs : RCAx2 - Jack 6,35mm - XLRx1
Audio outputs : RCAx2 - XLRx1
Output impedance : 47kOhms
Frequency response : 20Hz ~ 20kHz
S/N ratio : 102dB
Dynamic range : 106dB
THD : < 0,05%
Connectors : RJ45
Video output level : RCAx4
Video output impedance : 75 Ohms
Control : RS232x2 (PC + video)
Terminal block : RS485
Video bandwidth : 30MHz
Weight : 8kg
Dimensions : (19\"x2U) 483x350x89mm
