SPECIFICATIONS
Power under 8 Ohms: 2x700 W (20 Hz to 20 kHz)
Power under 4 Ohms: 2x950 W (20 Hz to 20 kHz)
Power mode bridge 8 Ohms: 1900 W RMS
Frequency response: 10 Hz to 40 kHz with 0.5% TDH at half power
Channel separation:> 70 dB at 1 kHz
Half-power DHT: <0.1% (20 Hz to 20 kHz)
Signal-to-noise ratio: 102 dB
Damping factor:> 200
Gain: 32.1 dB
Switching power supply
Two Attenuators (31 positions)
Stereo / bridge / parallel switch
Two high and low pass filter switches from 25 Hz to 150 Hz
Yamaha Speaker Processing Switch
Temperature Diodes / YS Processing / Signal / Clip
Thermal protection
Discrete ventilation
2x XLR inputs
2x 6.35mm jack inputs
2x Speakon outputs
2x outputs 6.35 mm Jack
2x outputs 5-way terminal blocks
Standby power consumption: 35 W
Consumption 1/8 of power: 700 W
Dimensions (W x H x D): 480 x 88 x 456 mm
Weight: 12 kg
Téléchargement
p_s2rie
Téléchargement (640.1KB)YAM.P7000S
Téléchargement (648.37KB)Manuel - YAM.P7000S_FR
Téléchargement (885.9KB)Manuel - YAM.P7000S_EN
Téléchargement (858.36KB)YAM.P7000S_1
Téléchargement (329.08KB)YAM.P7000S_2
Téléchargement (282.11KB)

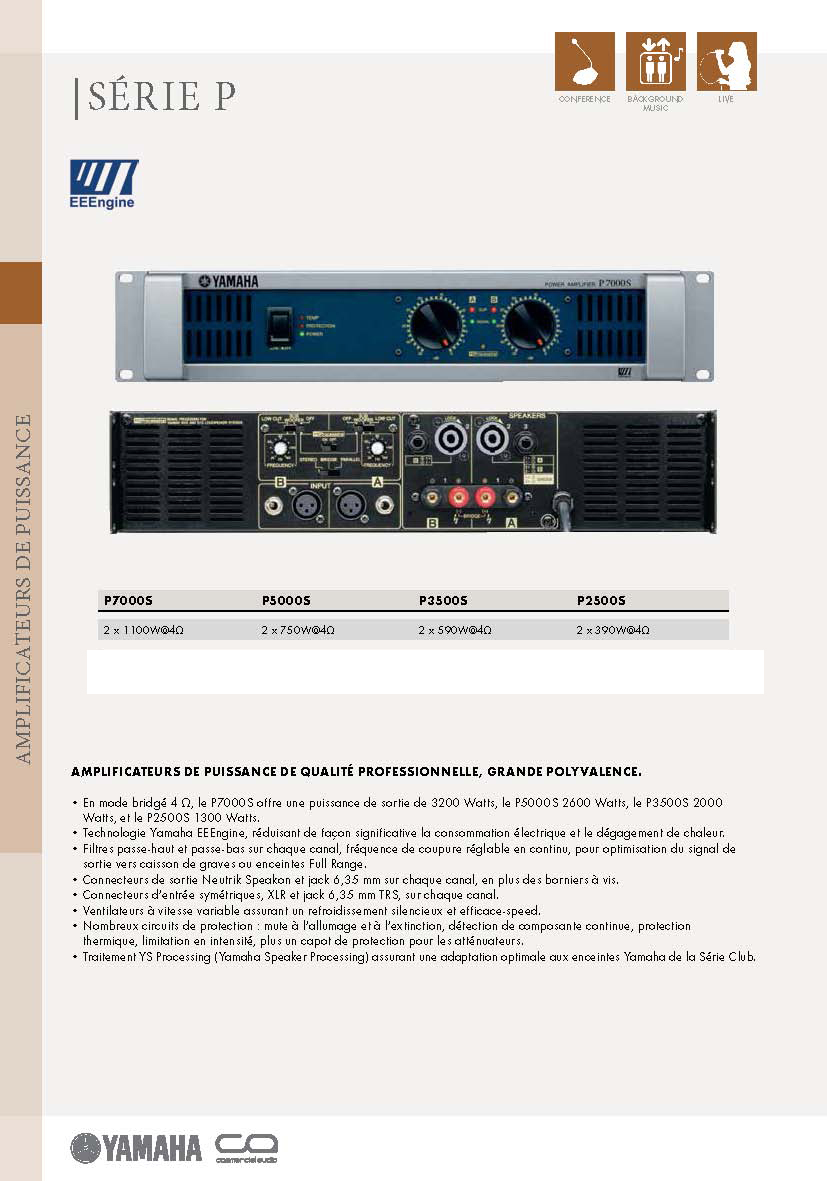

Yamaha's audio engineers have specifically designed the new P-Series power amplifiers to match the best-known speakers in the Club series.
