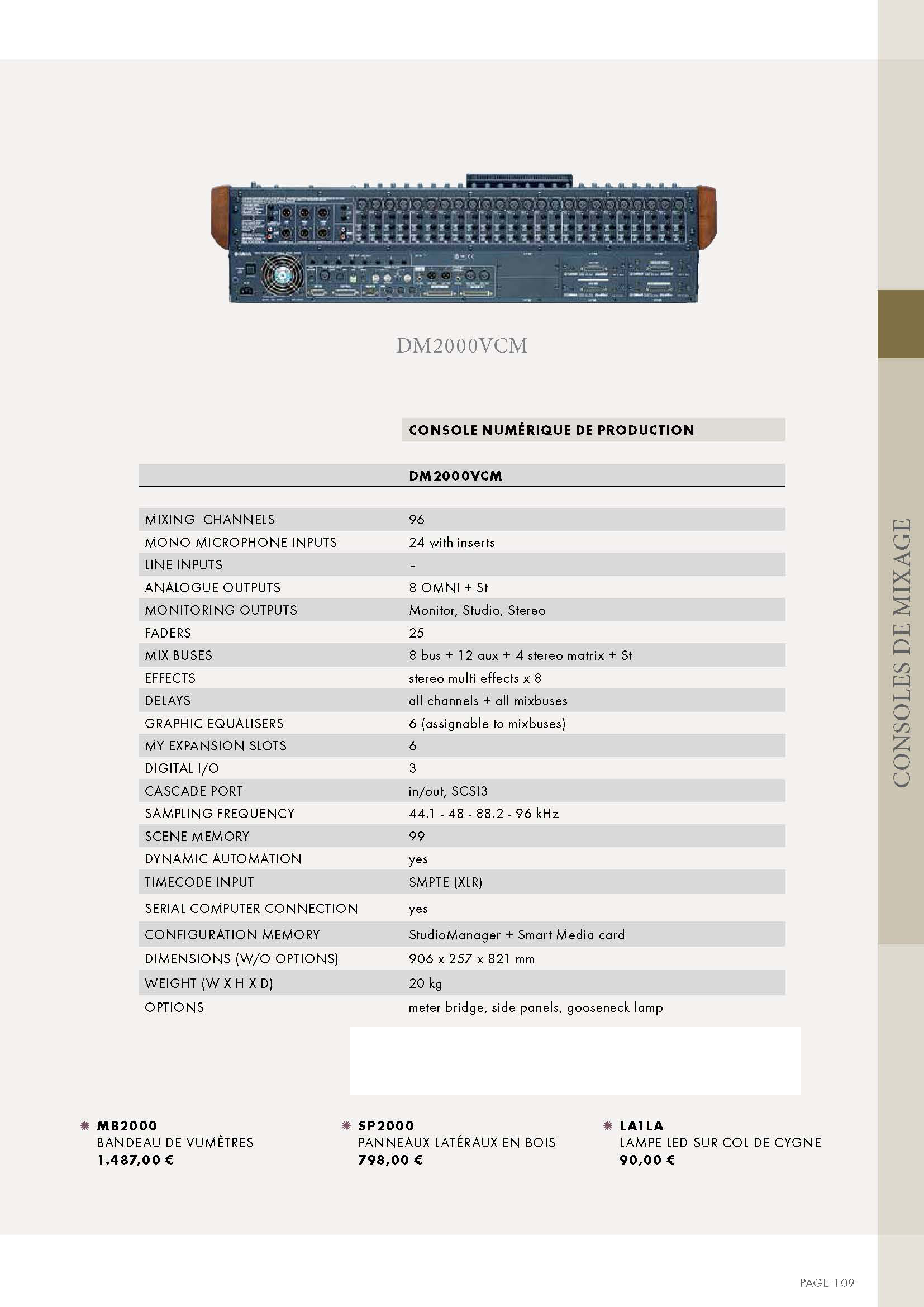

SPECIFICATIONS

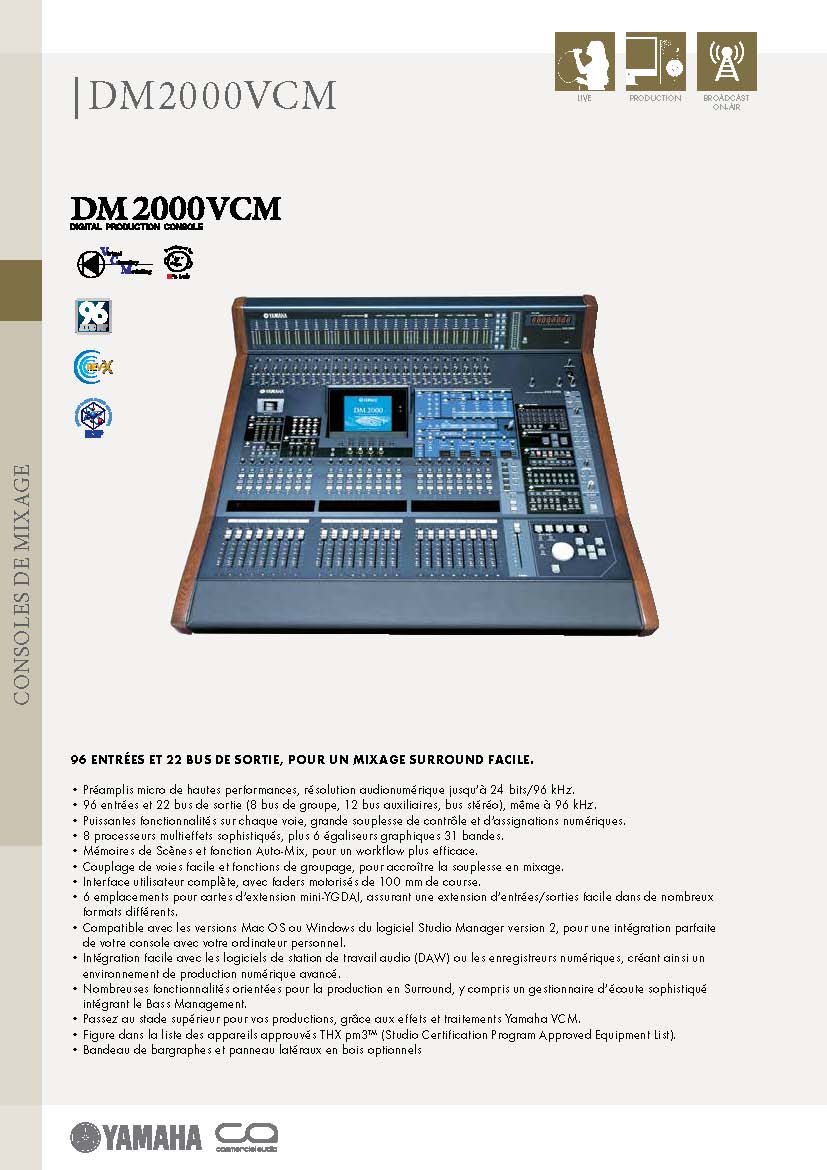

96 INPUTS AND 22 OUTPUT BUSES, FOR EASY SURROUND MIXING
High performance mic preamps, digital audio resolution up to 24-bit / 96 kHz
96 inputs and 22 output buses (8 group buses, 12 auxiliary buses, stereo bus), even at 96 kHz
Powerful features on every channel, great control flexibility and digital assignments
8 sophisticated multi-effect processors, plus 6 31-band graphic equalizers
Scene memories and Auto-Mix function, for a more efficient workflow
Easy channel coupling and grouping functions to increase mixing flexibility
Comprehensive user interface, with 100mm motorized faders
6 slots for YGDAI mini expansion cards, ensuring easy I / O expansion in many different formats
Compatible with Mac OS or Windows versions of Studio Manager version 2 software for seamless integration of your console with your personal computer
Easy integration with audio workstation software (DA W) or digital recorders, creating an advanced digital production environment
Numerous features geared for surround production, including a sophisticated listening manager integrating Bass Management
Upgrade to Production with Yamaha VCM Effects and Treatments
Listed in the THX pm3 ™ Approved Equipment List (Studio Certification Program Approved Equipment List)
Optional bar graph and wooden side panel
