8-channel microphone / line preamp

YAM.MLA8

New product

The MLA8 is an eight-channel mic preamp that has inherited the advanced technology of mic preamps used on the popular Yamaha DM2000 digital mixing console.
8 mic preamps and high quality line in a 1U rack mountable unit.

More details

More info

The MLA8 is an eight-channel mic preamp that has inherited the advanced microphone preamp technology from Yamaha's highly acclaimed DM2000 Digital Mixing Console. The MLA8 brings together in a compact 1U unit a 26 dB pad, an adjustable 44 dB gain trim, an 80 Hz high-pass filter and a phantom power switch on each channel. Two Euroblock terminals and a 25-pin D-sub connector are present on the rear panel for output connections, making the MLA8 a perfect complement to Yamaha digital mixers.


SPECIFICATIONS

Analog INPUT: 8
Analogue OUPUT: 2 x 8 (splitter)
INPUT Connectors: 8x XLR
OUPUT Connectors: 8x EuroBlock
8x D-Sub 25 pin

Download

YAM.MLA8

Download (253.15k)

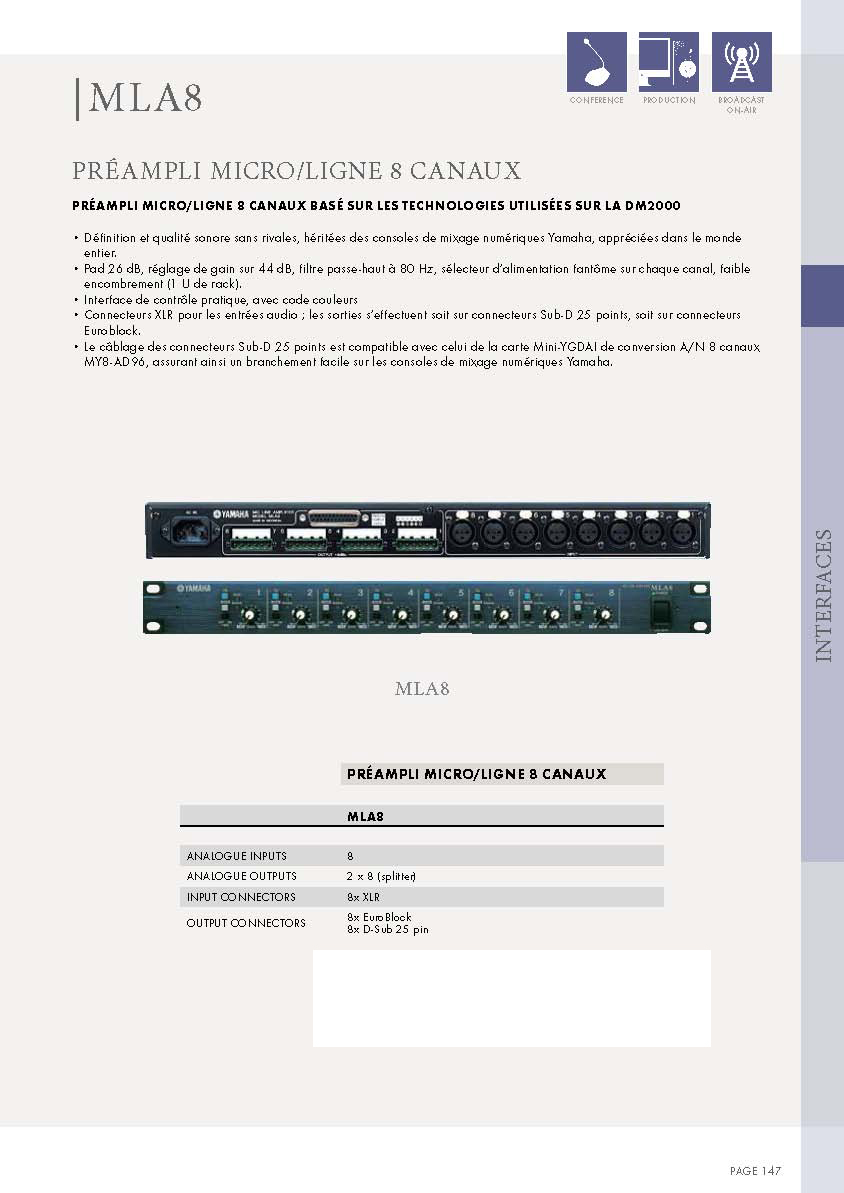

Manuel - YAM.MLA8_FR

Download (2.42M)

Manuel - YAM.MLA8_EN

Download (2.41M)
