View larger

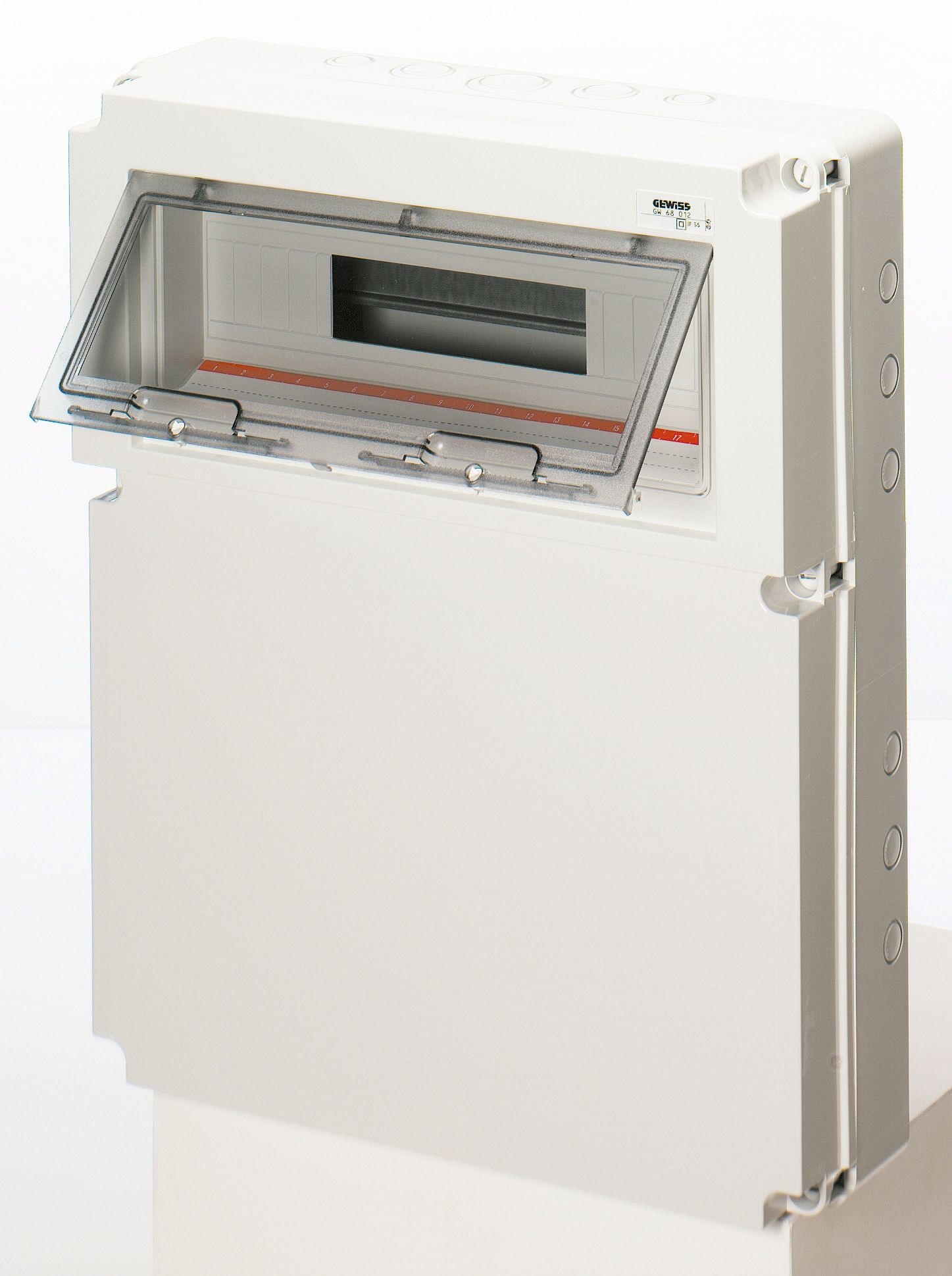

BOXE 560x450x135mm
GEW.68012
New product
Boxe of distribution waterproof Q-DIN 18 empty with full lid – smooth lid 18 modules - For fixed installation in projection and embeded
More info
TECHNICAL DATA
Colour
Grey RAL 7035
IP degree
IP65
No. of modules EN 50022
20
Houseable socket
Blank lid
Installation type
Surface-mounting
Dispersible power A (W)
30
Dispersible power B (W)
92
Accordance with Standards
EN 60208 - EN 60670-1 - IEC 60670-24
Glow Wire Test
650 °C
Shock resistance
IK09
Operating temperature
-25 +40 °C
Thermo-pressure with ball
70 °C
Insulation class
II
Version
Empty
Ware number
85381000
Grey RAL 7035
IP degree
IP65
No. of modules EN 50022
20
Houseable socket
Blank lid
Installation type
Surface-mounting
Dispersible power A (W)
30
Dispersible power B (W)
92
Accordance with Standards
EN 60208 - EN 60670-1 - IEC 60670-24
Glow Wire Test
650 °C
Shock resistance
IK09
Operating temperature
-25 +40 °C
Thermo-pressure with ball
70 °C
Insulation class
II
Version
Empty
Ware number
85381000
