Console de mixage audio numérique de sonorisation View larger

Digital Sound Mixing Console

YAM.PM5D-RH

New product

The PM5D-RH is equipped with 48 mic / line preamps from those of the PM5000, the values of the gains are stored in the scenes. Four stereo inputs (same preamps) can handle pairs of microphones. The outputs consist of 24 mixing busses, 8 dies, and the stereo bus with two A and B slots. The console also has 3 digital stereo inputs / outputs in AES / EBU and S / PDIF.

More details

More info

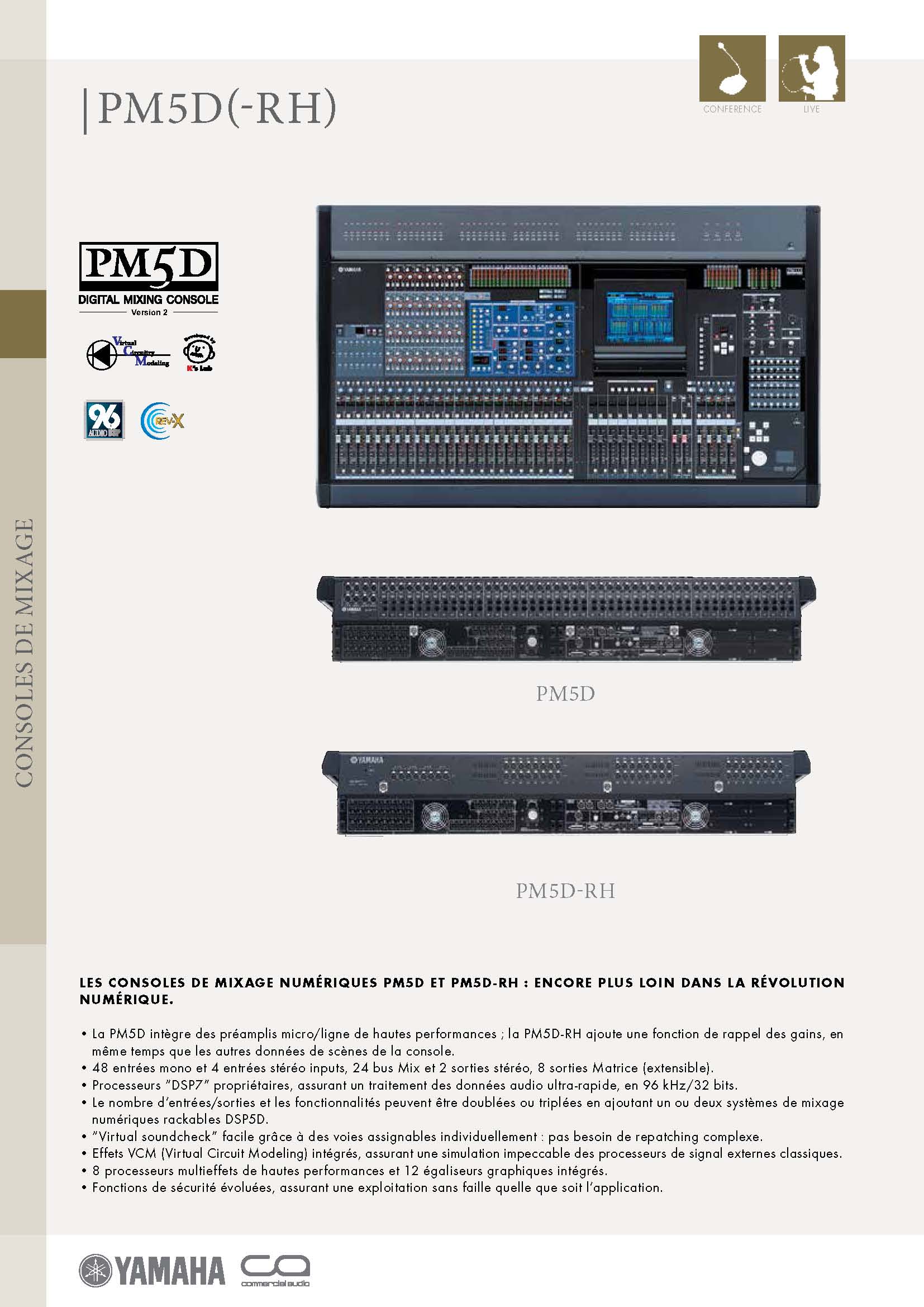

The PM5D is the reference console for live mixing and mixing installations in theater and broadcast. Two models are available: the PM5D with DM2000 type mic preamps and the PM5D-RH with mic preamps from the PM5000 whose gains are memorable.

Although the PM5D appears as a 24-channel console, it is much more than that: a total of 130 input connectors, 64 channels in LR, LCR and even surround mix, 24 mix buses, and 500 scene memories . Not to mention the equivalent of a huge processing rack: 56 noise-gates, 92 compressors, 97 delays, 12 graphic equalizers 31 bands and 8 multi-effects type SPX2000.

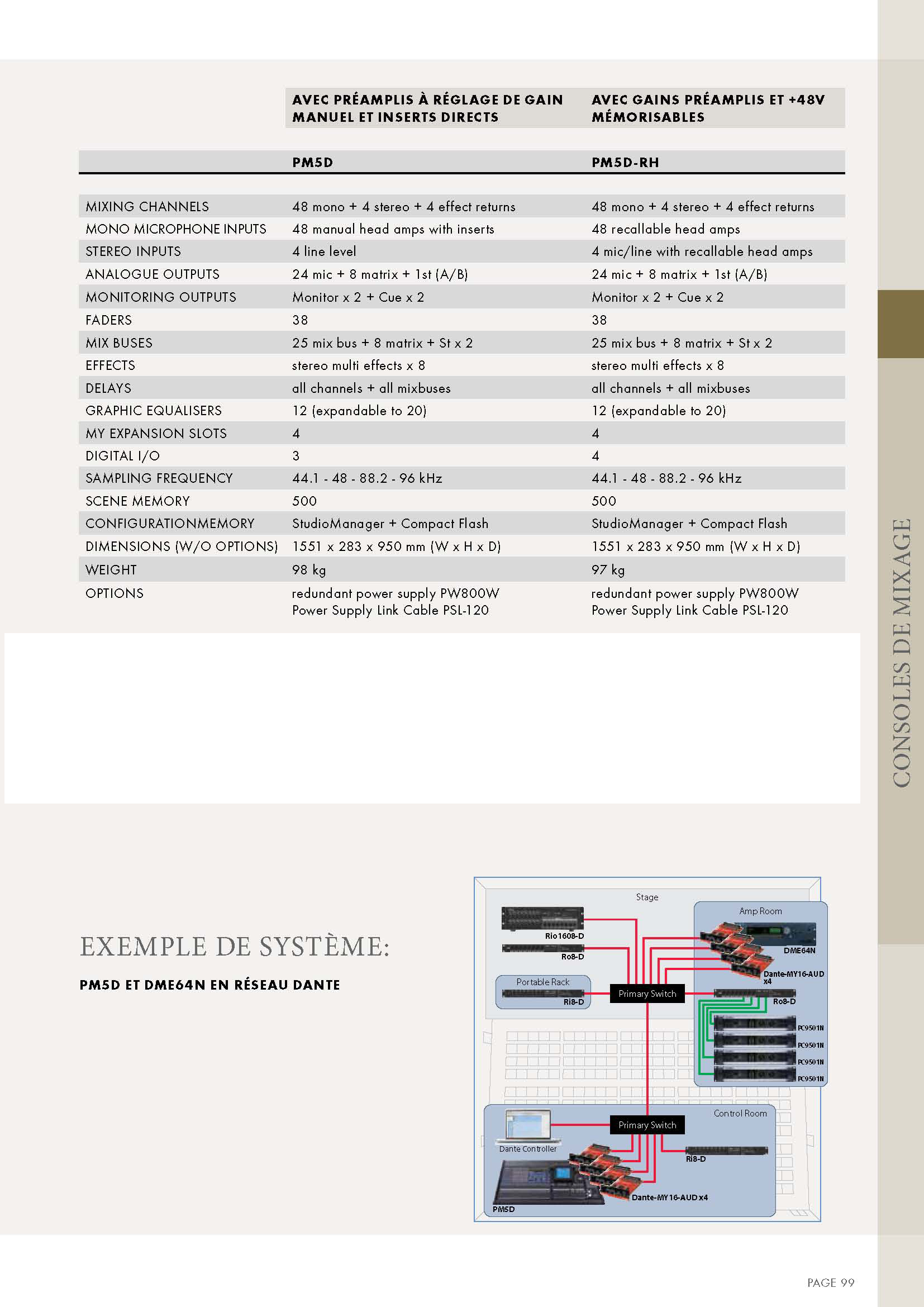

SPECIFICATIONS

Frequency range: 44.1 - 48 - 88.2 - 96 kHz
Effects: stereo multi effects x 8
Scene memory: 500
Memory Configuration: StudioManager + Compact Flash
Dimensions: 1551 x 283 x 950 mm
Weight: 97 kg
